IPC Insulating Piercing clamp
Piercing clampis a product specially designed for the connection of low-voltage insulated wire (cable), connecting the main line and branch line by puncturing the insulation layer of the wire (cable).With special connecting teeth clamp guarantees best contacting surface, also applying copper-aluminum adapter connection. Insulation case extremely seals and covers on insulation wire, it takes effect on water-proof.
The insulation puncture clamp profile：
1、Puncture structure, simple installation, insulated wires without peeling ；
2、Constant torque nut, puncture pressure, ensure the electrical connection in the good without damage wire ；
3、The sealing structure, moisture-proof, waterproof, anticorrosion, prolong the service life of insulated wires and wire clip ；
4、Using special contact blades, it is suitable for copper (aliminum) docking and copper aluminum transition；
5、Small electrical contact resistance and contact resistance is less than 2.5 time that of isometric branch wire resistance DL/T765.2001 standard；
6、Special insulation shell, lighting and environmental resistance, dielectric intensity＞12KV；
7、Surface design, it is suitable for wire connection with (different) diameter, wide connections（0.75m㎡-400m㎡/td）。

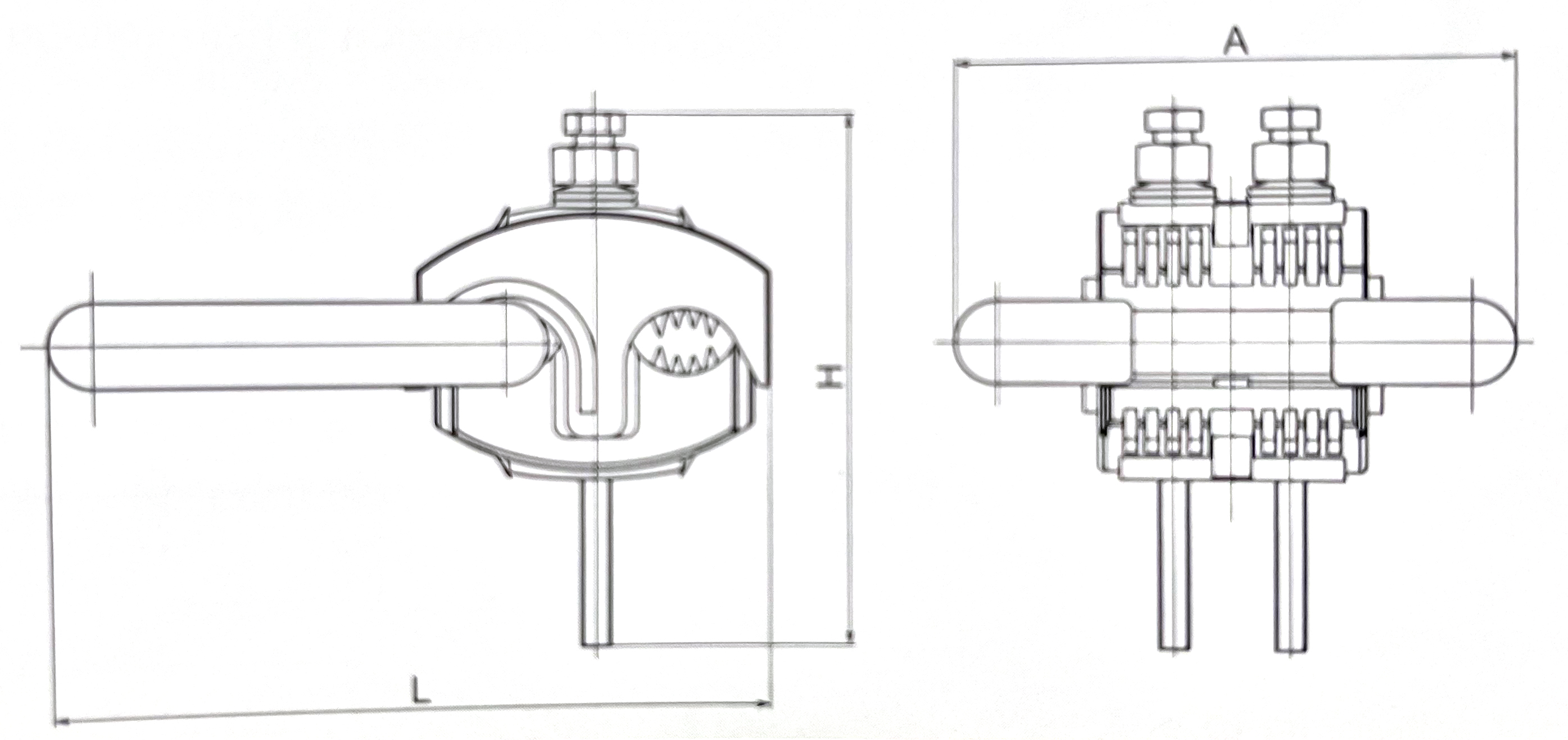

10KV JBCF TYPE INSULATING PIERCING GROUNDED CLAMP（protion）
|
Model
|
Applicable conductor（mm²) |
Overall dimensions (mm) |
Nominal current（A）
|
Boit number
|
||
|
L |
H |
A |
||||
|
JBCF-95/25 |
25-95 |
144.5 |
92.5 |
140 |
252 |
2 |
| JBCF-185/95 | 95-185 |
152 |
112.5 |
140 |
475 |
2 |
| JBCF-240/240 | 185-240 |
160 |
112.5 |
140 |
475 |
2 |
Overview
|
Place of Origin: hanghai, China |
Brand Name: Spowery |
|
Product Name： Piercing clamp |
Model Number: JBC、JBCF、JDLX |
|
Blade: Al or brass or copper |
Certificate: CE |
|
OEM: Accetable |
Export: All over the world |
Lead Time:
|
Quantity(Pieces) |
1 - 5000 |
>5000 |
|
Est. Time(days) |
25 |
To be negotiated |
Packaging & Delivery
Packaging Details Standard Exported Packing Or As Your Request
Port：shanghai

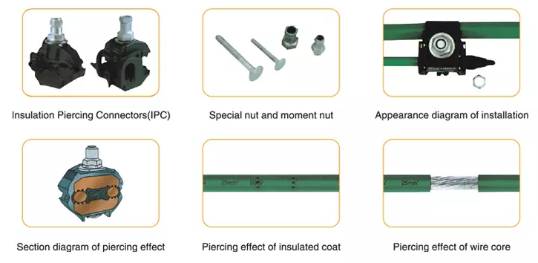

Picture Example:
